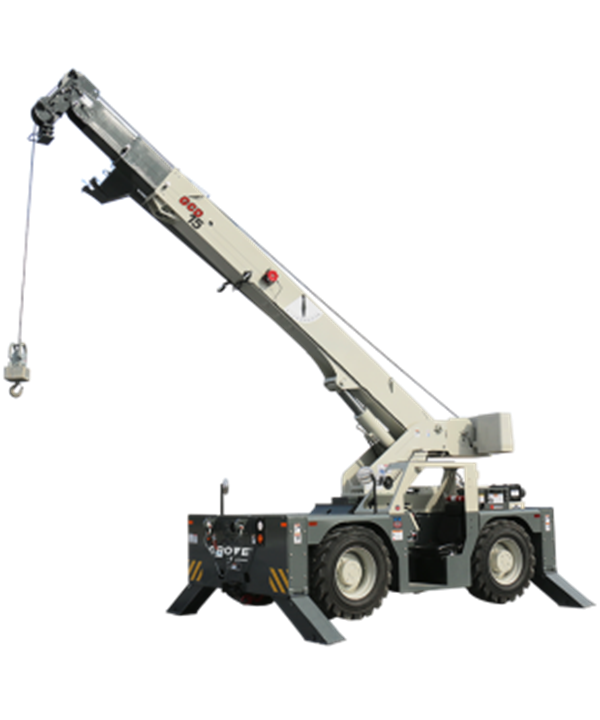

Grove GCD15

The new GCD15 is a 15 Ton capacity carry deck crane, offering a three-section 41 ft boom, two-wheel drive/four-wheel steer capability. It also has a three-position pivoting boom
head for low head room clearance and oblique-style outriggers with nylatron outrigger wear pads.

GCD15 Benefits:

EPA Tier 4 Final emissions compliant without the use of a SCR or UREA injected DEF system. No Diesel Exhaust Fluid (DEF) required.

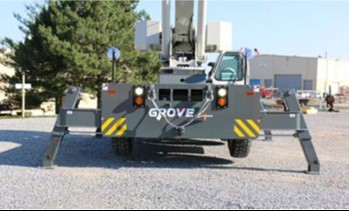

The GCD15 includes many easy to operate features such as mechanical lever proportional controls, independently controlled single-stage oblique outriggers and a simple to operate RCL system.


An optional 17.3 ft - 50 ft four-section, full power main boom and a 15 ft fixed swing-away extension are available to offer higher reach.



Operator focused design

• A storage tray and main storage box are located in the front
center of the carrier and are suitable for storing the downhaul
ball or hook blocks available on this model
• Stow rigging equipment in a storage box located on the right
hand side of the machine. This compartment has a latched
door to prevent accidental opening when machine is in
operation
• Full LED lighting package (improved visibility and longer
lasting)
• Cab is up to 4.8” wider than the common cab providing more
operator comfort. Split cab door with sliding glass window
• Graphical, simple to operate RCL system

Operator Focused Design

Optional boom and boom extension

• 17.8 – 50 ft (5,4 – 15,4 m) four section, full power boom
• 15 ft (4,6 m) fixed swingaway extension with maximum tip
height of 69.5 ft (21,18 m); extensions can be offset 0˚, -15˚,
and -30˚ via pivoting boom nose

Boom and Boom Extension     Pivoting Nose

Steering

• Three modes of steering: two-wheel (front),
four-wheel coordinated and crab
• Excellent maneuverability in confined spaces
• Best turning radius in class

Piston pump hydraulics

• New design allows for a stronger, smoother, and
a more efficient crane that is easy to maintain
and operate
• Large swing open access panel for easy
serviceability
• Provides excellent multi-function operation
speeds

Engine and drive options

• KEM 4.3 Dual Fuel engine LP/Gas
• Tier IV Final Cummins QSF 3.8 L 74 HP engine
• Tier III Cummins QSF 3.8 L 99 HP engine for sales
outside the USA and Canada
• 4x4 with oscillating rear axle
