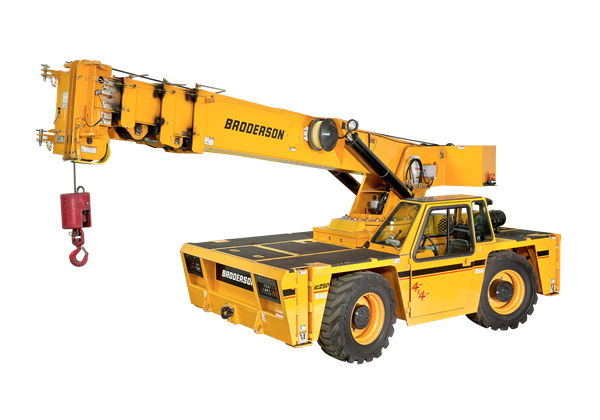

Broderson IC 200

Broderson IC 200

Ideal for lifting materials that requires a compact low-profile crane that can clear overhead obstacles and maneuver in tight spaces, the Broderson IC 200 is extremely popular because of day in day out performance and versatility. Precision controls and heavy duty design to pick and carry heavy loads, coupled with the steering flexibility to maneuver in tight spaces, provide the versatile operating performance you come to expect from heavy duty Broderson Carry Deck Cranes.

Major Standard Features

Self-Loading Carry Deck crane increases the range of current and potential future applications.

3 or 4-Section Boom with a continuous 360 degree swing rotation turret. Simple, rugged worm drive gear box results in greater reliability.

Hoisting with a hydraulically-powered turret-mounted planetary gear system provides all the low speed power to lift heavy loads, yet also a high speed setting for faster cycle times when lifting lighter loads.

Hydraulic Power is provided by a direct driven tandem pump delivering 29 gpm.

Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stops boom functions in the event of overloads.

Multiple Steering Configurations: 2-Wheel, 4-wheel or crab steering. Electronic sensors and control box automatically align the steering when a new mode is selected.

Powershift Transmission, with 4 speeds forward and reverse, minimizes bumps and jolts during shifting that are possible at any engine speed in any gear.

Heavy Duty Chassis Frame provides a front deck carrying capacity of 17,000 lbs.

Drum Rotation Indicator improves operator productivity.

Narrower and Lower Profile Design for better access to tight work spaces.



Specifications

  Height 8'
  Width 7' 10-1/2"
  Main Boom 50'
  Lifting Capacity 30,000 lbs. (15 Tons)
  Max Tip Height 73' 8" (with Boom Extension)
  Boom Rotation 360° Continuous
  Gross Vehicle Weight 31,080 lbs. (14,100 kg)







Rent this Equipment

Features

Specifications

Capacity on Outriggers 30,000 lbs (16,330 kg)
Pick and Carry Capacity 17,000 lbs (8,400 kg)
Self-Loading Carry Deck Capacity 17,000 lbs (centered)
Height 8’ (2.45 m)
Width 7’ 10.5" (2.4 m)
Maximum Tip Height 73' 8" (22.5 m)
Maximum Horizontal Reach 66' (20.1 m)
